Max Laser Engraver Enclosure Kit V3 - Coming soon

The Max Laser Engraver Enclosure Kit V3 by Clearview Plastics is a made-to-fit safety and ventilation upgrade for today's large-format diode laser engravers — the 800 mm-class (and larger) machines that have outgrown every enclosure on the market. If you've invested in a Sculpfun S40 Max, Sculpfun S70 Max, Atomstack A70 Max, Atomstack Glacier, Laser Tree K1 Max, Ikier K40 Max, TwoTrees TTS-20 Max, or TYVOK X1S, this is the enclosure built to protect it, contain its smoke, and fit the way you actually work.

Designed and CNC-cut in the USA, this "set-over" tabletop enclosure drops right over your engraver and holds it in a sealed working envelope. It has a 1220 x 1220 mm (48" x 48") external footprint and is framed in rigid 2020 aluminum extrusion, leaving an internal working area of roughly 1200 x 1200 mm with about 395 mm (15.5") of height — room for the full gantry travel, the rotary, and a tumbler. If your laser engraver fits within that footprint, this enclosure is designed to work with it. It assembles in minutes with a screwdriver and Allen key, requires zero modification to your machine, and comes ready for the camera, lighting, and exhaust accessories that turn a bare frame into a professional workstation.

Fits large-format diode lasers — even the ones over 800 mm

Here's what trips up most buyers: your engraving area isn't the same as your machine's footprint, and an enclosure has to clear the whole frame. The Max V3's 1220 x 1220 mm (48" x 48") external footprint — roughly 1200 x 1200 mm of internal working area inside the 2020 extrusion frame — is sized to swallow the full frame of these big-bed machines, including the models whose engraving field runs past 800 mm, like the iKier K40 Max and Atomstack A70 Max at 850 mm. If your machine fits within that footprint, it works — and these are on the list:

• Sculpfun S40 Max — 830 × 800 mm engraving field
• Sculpfun S70 Max — 830 × 800 mm engraving field
• Atomstack A70 Max — 850 × 800 mm engraving field
• Atomstack Glacier — 800 × 800 mm engraving field
• Laser Tree K1 Max — 800 × 600 mm engraving field
• iKier K40 Max — 850 × 800 mm engraving field
• TwoTrees TTS-20 Max
• TYVOK X1S — 800 × 800 mm engraving field (base configuration)

Every one of these — frame and all — sits comfortably inside the enclosure with room for the gantry to travel. The larger 830–850 mm machines are exactly what this enclosure was built around, so you don't have to wonder whether your bigger bed will squeeze in. It will.

Running a machine that isn't listed, or a modular/extended configuration (like a TYVOK X1S set up beyond its base bed)? Send us your model and frame dimensions and we'll confirm the fit before you buy — no guesswork.

Protect a serious investment

A large-format diode laser is a significant purchase, and running it open on a bench is the fastest way to shorten its life and foul your shop. Every pass lays down a fine soot that settles on rails, lenses, and electronics, while smoke and fumes drift straight into the room you're standing in. The Max V3 wraps your machine in commercial-grade 1/4" (6 mm) panels that keep debris off your investment, contain the plume at the source, and give you a clean, controlled environment every time you fire the beam. It's the difference between a machine that looks new in three years and one that doesn't.

Deploys fast and works with your workflow

This enclosure was engineered around how large-format diode owners actually run jobs — not just to be a box:

• Quick to deploy — no part swaps or permanent modifications. A screwdriver and Allen key are all you need, and the set-over design means you can lift it off for maintenance or transport.
• LightBurn-compatible hood camera — an optional USB camera mounts to the lid for accurate part alignment and LightBurn tracing without opening the enclosure.
• Rotary-ready — about 15.5" (395 mm) of internal height clears the rotary and an articulated laser head, with room for objects up to an 80 mm tumbler or glass.
• Adjustable airflow vents — offer control over airflow volume and direction for cleaner, more efficient extraction.
• 3 wire grommet ports — feed in wires, air-assist tubing, and anything else that needs to pass into the enclosure.
• Dual access doors — magnetically latched front and top doors make loading and adjustments easy.

Contain the smoke, soot, and glare

Diode lasers operate around 445–450 nm and are rated Class 4 — the highest laser hazard class. Cutting and engraving wood, acrylic, leather, painted, stained, or sealed materials releases smoke and fine particulate you don't want to breathe. The Max V3 gives you real containment:

• Two 4" exhaust ports — select which side vents to best suit your workspace, connect a flexible 4" hose, and route smoke and fumes out a window or to a filter. Pair it with a 95 CFM or 200 CFM fan, our window exhaust kit, or PrintPRO 3 filtration for the level of extraction you need.
• Adjustable airflow vents — fine-tune airflow volume and direction for efficient source capture.
• BOFA PrintPRO 3 compatible — integrate a professional fume-filtration system for indoor operation without external venting.

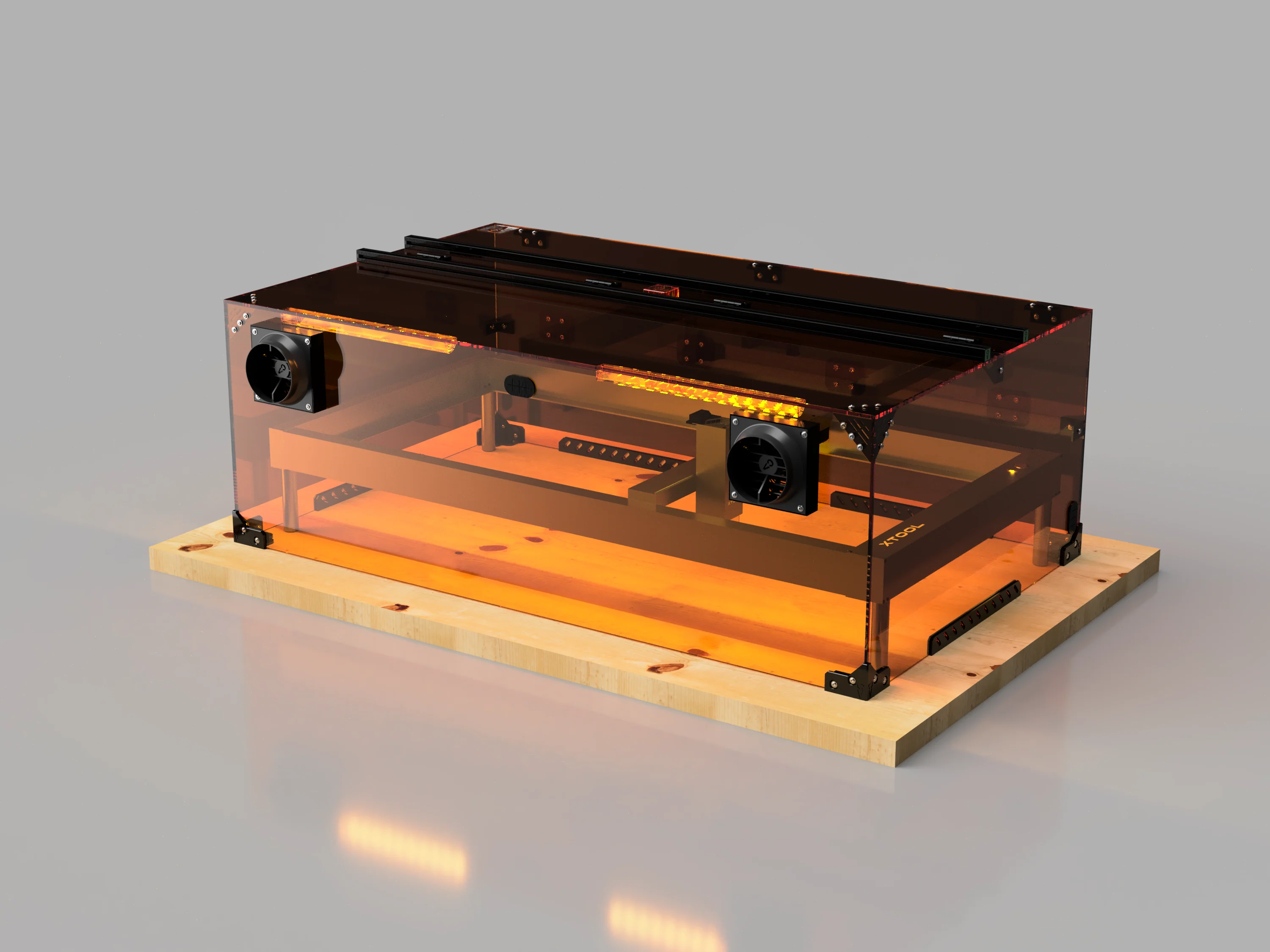

• Optional amber laser-filtering panels — spectrometer-tested to block up to 99.8% of light transmission at 450 nm (OD3+ filtering up to 520 nm), dramatically cutting the harsh blue flash for a far more comfortable work area.

Important: the laser-filtering panels reduce indirect glare but are not a certified laser-safety window and do not reclassify your Class 4 laser. Always wear OD-rated safety glasses for your wavelength (e.g. OD5+ for 450 nm diodes) while the laser is in use. Need an enclosure that meets ANSI guidelines? Contact us directly.

Configure your kit

• Panels & hardware — precision CNC-cut 1/4" panels in clear or optional amber laser-filtering acrylic, plus rust-resistant hardware.
• Printed parts — print your own brackets from the included files, or add our pre-printed parts for a complete, ready-to-build kit.
• Add-on accessories — LightBurn hood camera, dual-channel USB LED lighting kit, exhaust/inline fan and window venting, and BOFA filtration.
• Extendable & expandable — add a second enclosure to extend the footprint, or reconfigure the exhaust side to suit your space.

Specifications

• Fits: large-format diode engravers with engraving fields up to ~850 mm (Sculpfun S40/S70 Max, Atomstack A70 Max & Glacier, Laser Tree K1 Max, iKier K40 Max, TwoTrees TTS-20 Max, TYVOK X1S)
• External footprint: 1220 mm W x 1220 mm D x 405 mm H (48" x 48" x 16")
• Internal working area: ~1200 mm W x 1200 mm D x 395 mm H (2020 aluminum extrusion frame)
• Design: set-over tabletop enclosure — fits any engraver within the footprint
• Panels: commercial-grade 1/4" (6 mm) acrylic — clear or optional amber laser-filtering
• Exhaust: two 4" exhaust ports (select your vent side); fan sold separately — 95 CFM (light-duty), 200 CFM (compact), window exhaust kit, or PrintPRO 3 filtration
• Ports & airflow: 3 wire grommet ports; adjustable airflow vents for volume and direction
• Doors: magnetically latched front and top access
• Made in: Sacramento, California, USA

Download files and assembly instructions here

Why choose the Clearview Max V3 enclosure

• Made-to-fit, not generic — sized for large-format diode machines, with clearance for the gantry, rotary, and extensions.
• Protects your machine and your lungs — keeps soot off your laser and smoke out of your breathing zone.
• Workflow-first features — hood camera, adjustable airflow vents, wire grommet ports, and dual doors built in.
• Commercial-grade build — thick 1/4" panels with the weight and feel of professional lab equipment.
• US-made by a small business — CNC-cut in Sacramento with genuine, hands-on support.

About Clearview Plastics

Neil Henderson here, owner and head designer at Clearview Plastics. My shop is a California-based artisan design studio, and we build every enclosure in-house in Sacramento. Our panels are professionally CNC-cut for accuracy, with parts designed specifically for each machine we support — this isn't a generic box off a marketplace. When you order through us, you work directly with me, and that relationship comes with my genuine appreciation and skilled, personal help.

Frequently asked questions

Will my large-format diode laser fit — even if it engraves more than 800 mm?
Yes. The enclosure has a 1220 mm W x 1220 mm D x 405 mm H external footprint, leaving roughly 1200 x 1200 mm and about 395 mm of height inside the 2020 extrusion frame — sized to clear the full frame of these machines, not just their engraving field. Models that mark past 800 mm, like the iKier K40 Max and Atomstack A70 Max (850 mm), fit. It's designed around the Sculpfun S40/S70 Max (830 mm), Atomstack A70 Max and Glacier, Laser Tree K1 Max, iKier K40 Max, TwoTrees TTS-20 Max, and TYVOK X1S (base configuration). If your engraver fits within the footprint, the enclosure is designed to work with it — and if your model isn't listed or you run an extended/modular bed, send us your machine's frame dimensions and we'll confirm fit before you order.

Do the laser-filtering panels mean I don't need safety glasses?
No. The amber panels filter light at the wavelength diode lasers operate at and greatly reduce indirect glare, but they are not a certified laser-viewing window. Always wear appropriate OD-rated safety glasses (e.g. OD5+ for 450 nm) whenever the laser is running.

Does this enclosure comply with ANSI Z136.1?
No. This enclosure is designed for fume containment and glare reduction, not to reduce a Class 4 laser to Class 1. Follow all Class 4 laser safety protocols. If you need an enclosure that meets ANSI guidelines, contact us directly.

Does it have an exhaust port for smoke and fumes?
Yes. The enclosure includes a 4" exhaust port to connect a flexible 4" hose and vent outside. From there, add the fan setup that fits your workload: a 95 CFM exhaust fan (includes the mounting bracket) for light-duty use, a 200 CFM compact fan for added air circulation, or our window exhaust kit — an inline fan, window insert, and 16 feet of hose. If venting outside isn't possible, add a BOFA PrintPRO 3 filtration unit to clean the air indoors.

Is there room for a rotary?
Yes. The internal height (about 395 mm / 15.5") clears the rotary and a fully articulated laser head, with enough room to engrave objects up to an 80 mm glass or tumbler.

What's included, and what do I supply?
The base kit includes acrylic panels and hardware; you print the brackets from the included files. Add our pre-printed parts for a complete kit. In all cases you supply a 4" dryer hose, and for heavy use we recommend adding an inline exhaust fan.

Do you ship internationally?
Yes. Shipping is calculated at checkout via USPS/UPS/FedEx (HS code 8538.10). Express services often cover import fees, but additional VAT, tariffs, or fees may apply depending on your country.

What is your return policy?
We offer a 30-day return policy. Unused, undamaged panels with the masking fully attached are eligible for a full refund less return shipping. If panels are damaged after shipment or the protective mask has been removed, we can't offer a refund. To check fitment, consider partially assembling with the mask still on — if it isn't for you, you're still eligible for a full refund.

Why do the product photos vary slightly?

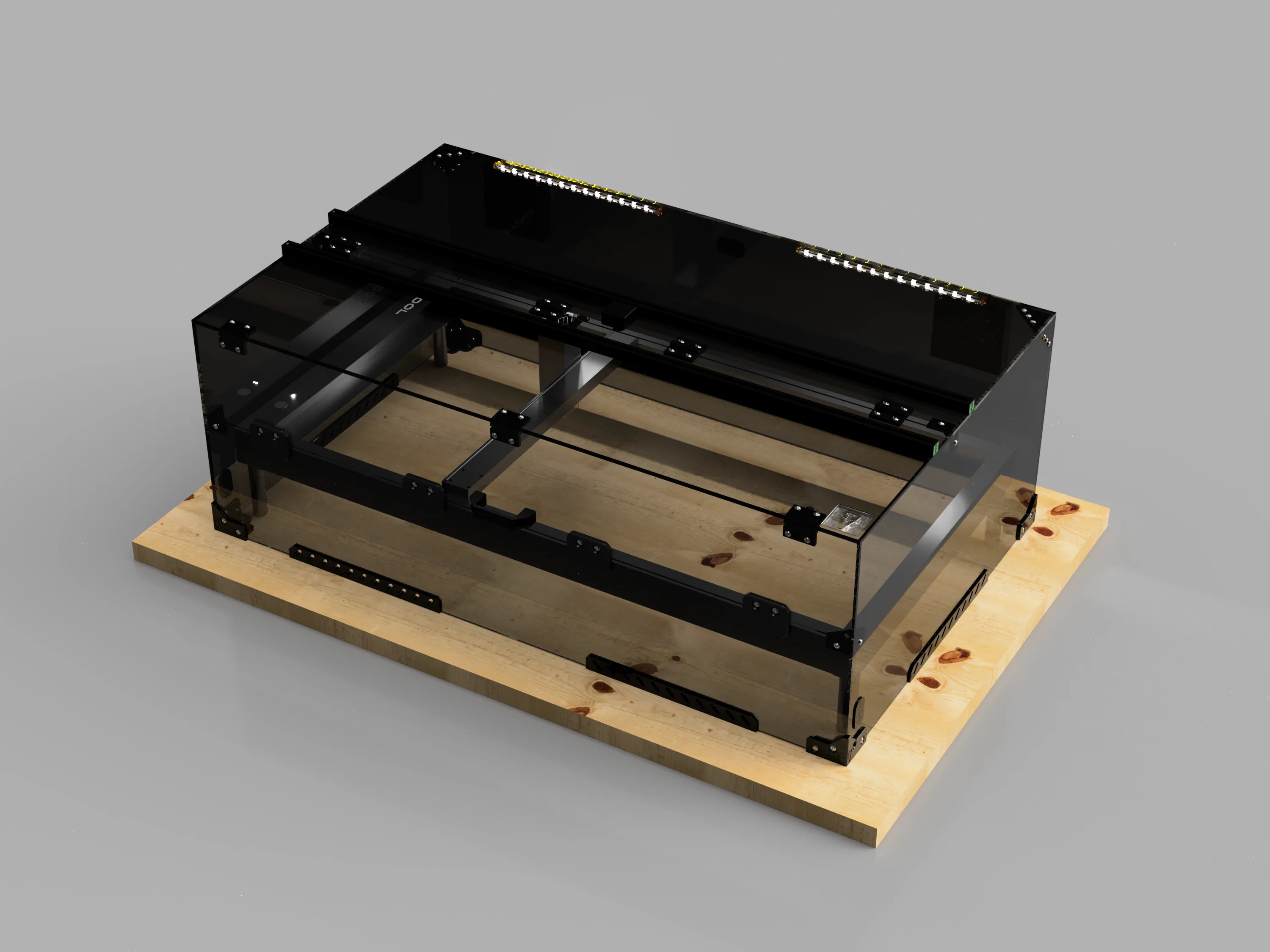

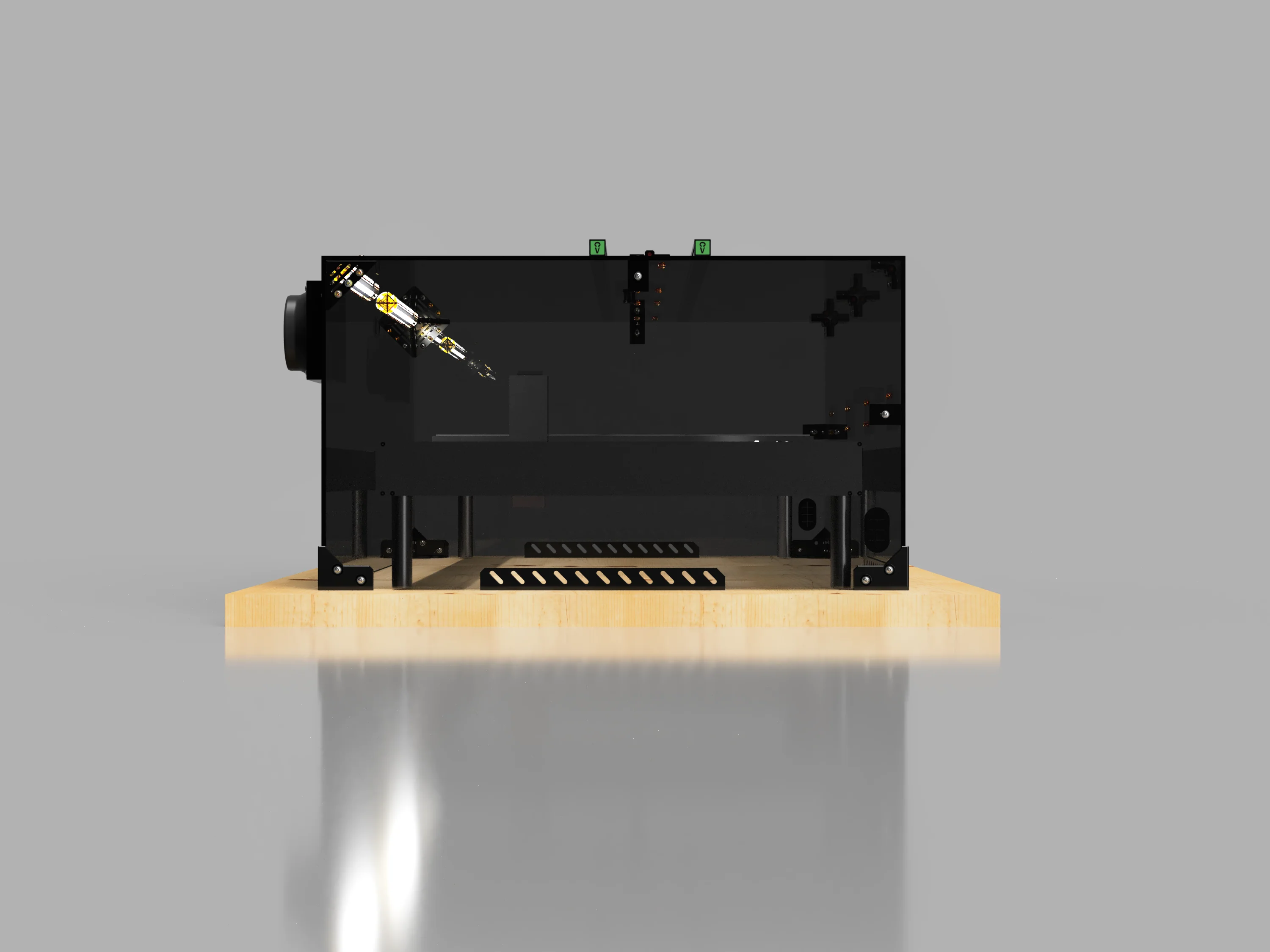

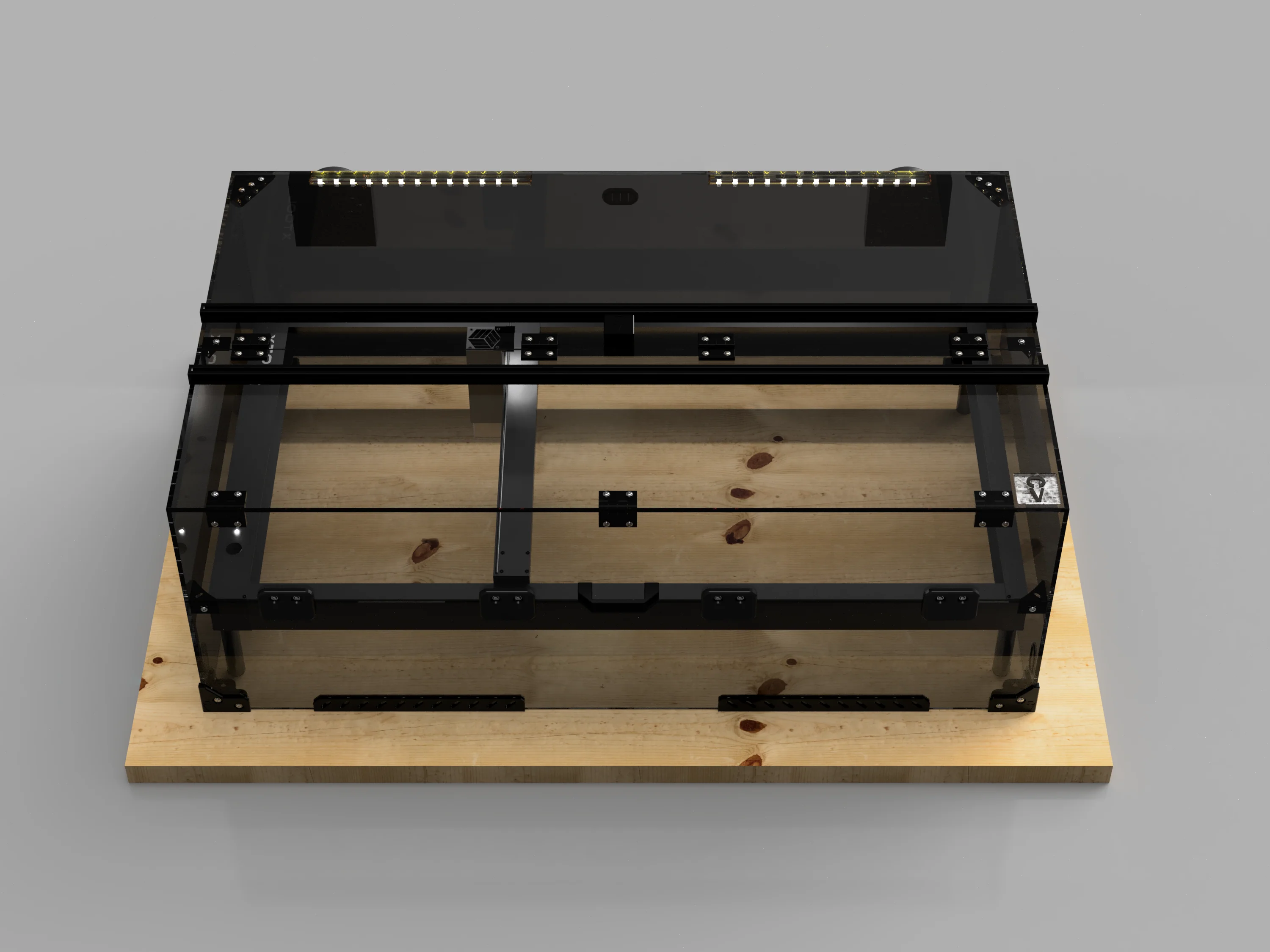

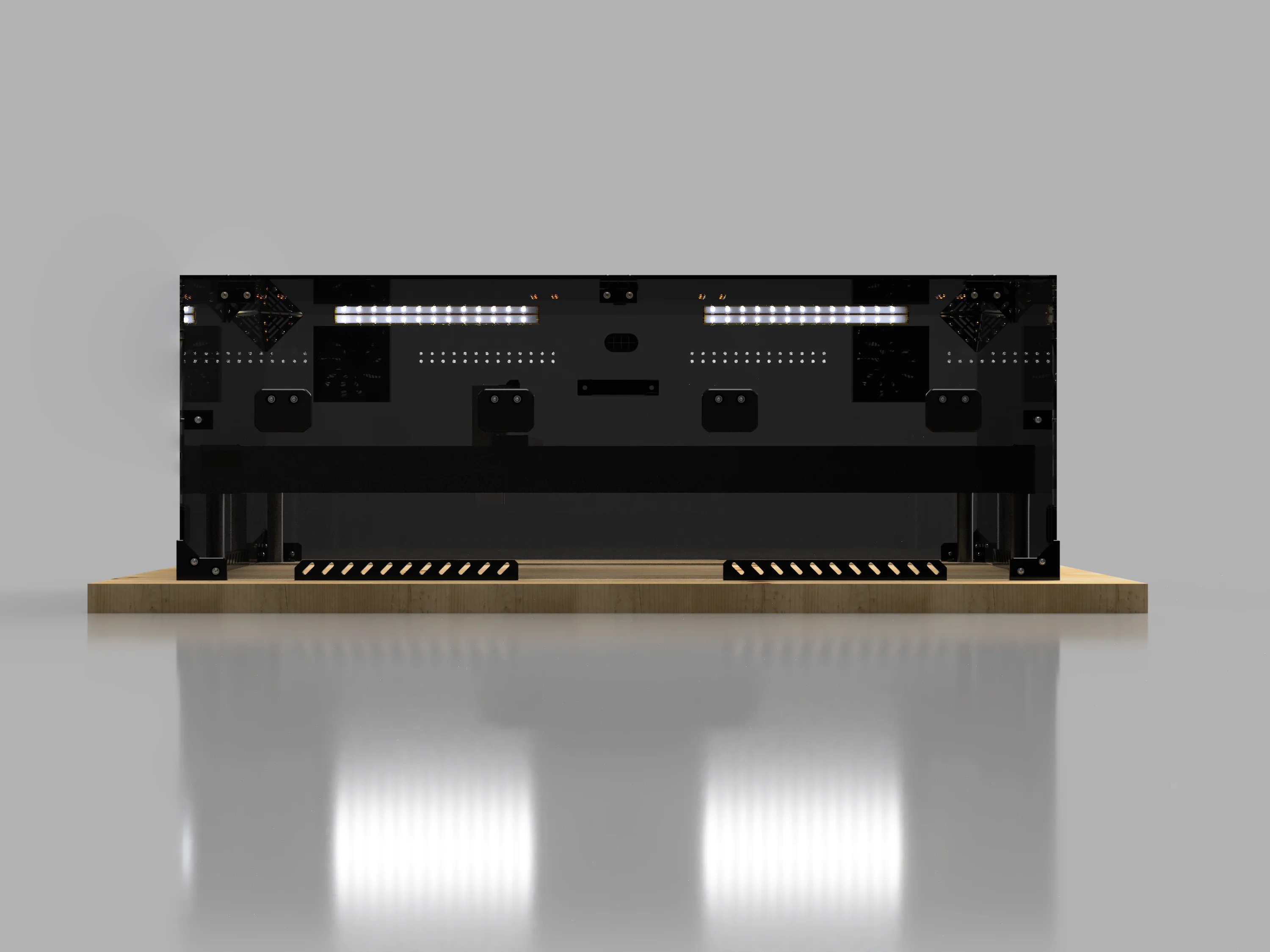

We update and improve our enclosures often, and as a small business a fresh photoshoot for every iteration isn't realistic. Function is always constant or improved. For the clearest picture of the current version, rely on the renderings rather than the photos.
