Algolaser Alpha Extended Laser Engraver Enclosure Kit V3

The Algolaser Alpha Extended Laser Engraver Enclosure Kit V3 by Clearview Plastics is a made-to-fit safety and ventilation upgrade built specifically for the Algolaser Alpha — the extended-format diode engraver with a 400 × 850 mm work area. It protects your investment, contains the smoke and soot, and fits the Alpha's long-bed workflow, so you can run wood, acrylic, leather, and coated-material jobs cleanly indoors.

Your Alpha drops right into the enclosure's 1170 x 710 x 405 mm (46" x 28" x 16") external footprint — roughly 1160 x 700 mm inside the frame, with about 399 mm (15.7") of height for the long gantry travel, the rotary, and a tumbler. The Alpha's extended 850 mm bed runs past what a standard square box can hold — the Extended V3 is built around exactly this kind of stretched Y-axis, and it fits with clearance on every side. It assembles in minutes with a screwdriver and Allen key and requires zero modification to your machine.

Also compatible with other extended-format diode lasers — running a different machine? See our universal Extended Laser Engraver Enclosure Kit V3.

Protect your engraver and your shop

Running a laser open on a bench is the fastest way to foul your shop and shorten your machine's life. Every pass lays down a fine soot that settles on rails, lenses, and electronics, while smoke and fumes drift straight into the room you're standing in. The Extended V3 wraps your machine in commercial-grade 1/4" (6 mm) panels that keep debris off your engraver, contain the plume at the source, and give you a clean, controlled environment every time you fire the beam. It's the difference between a machine that looks new in three years and one that doesn't.

Deploys fast and works with your workflow

This enclosure was engineered around how extended-bed diode owners actually run jobs — not just to be a box:

• Quick to deploy — no part swaps or permanent modifications. A screwdriver and Allen key are all you need, and the set-over design means you can lift it off for maintenance or transport.
• LightBurn-compatible hood camera — an optional USB camera mounts to the lid for accurate part alignment and LightBurn tracing without opening the enclosure.
• Rotary-ready — about 15.7" (399 mm) of internal height clears the rotary and an articulated laser head, with room for objects up to an 80 mm tumbler or glass.
• Adjustable airflow vents — offer control over airflow volume and direction for cleaner, more efficient extraction.
• 3 wire grommet ports — feed in wires, air-assist tubing, and anything else that needs to pass into the enclosure.
• Dual access doors — magnetically latched front and top doors make loading and adjustments easy.

Contain the smoke, soot, and glare

Diode lasers operate around 445–450 nm and are rated Class 4 — the highest laser hazard class. Cutting and engraving wood, acrylic, leather, painted, stained, or sealed materials releases smoke and fine particulate you don't want to breathe. The Extended V3 gives you real containment:

• Two 4" exhaust ports — select which side vents to best suit your workspace, connect a flexible 4" hose, and route smoke and fumes out a window or to a filter. Pair it with a 95 CFM or 200 CFM fan, our window exhaust kit, or PrintPRO 3 filtration for the level of extraction you need.
• Adjustable airflow vents — fine-tune airflow volume and direction for efficient source capture.
• BOFA PrintPRO 3 compatible — integrate a professional fume-filtration system for indoor operation without external venting.

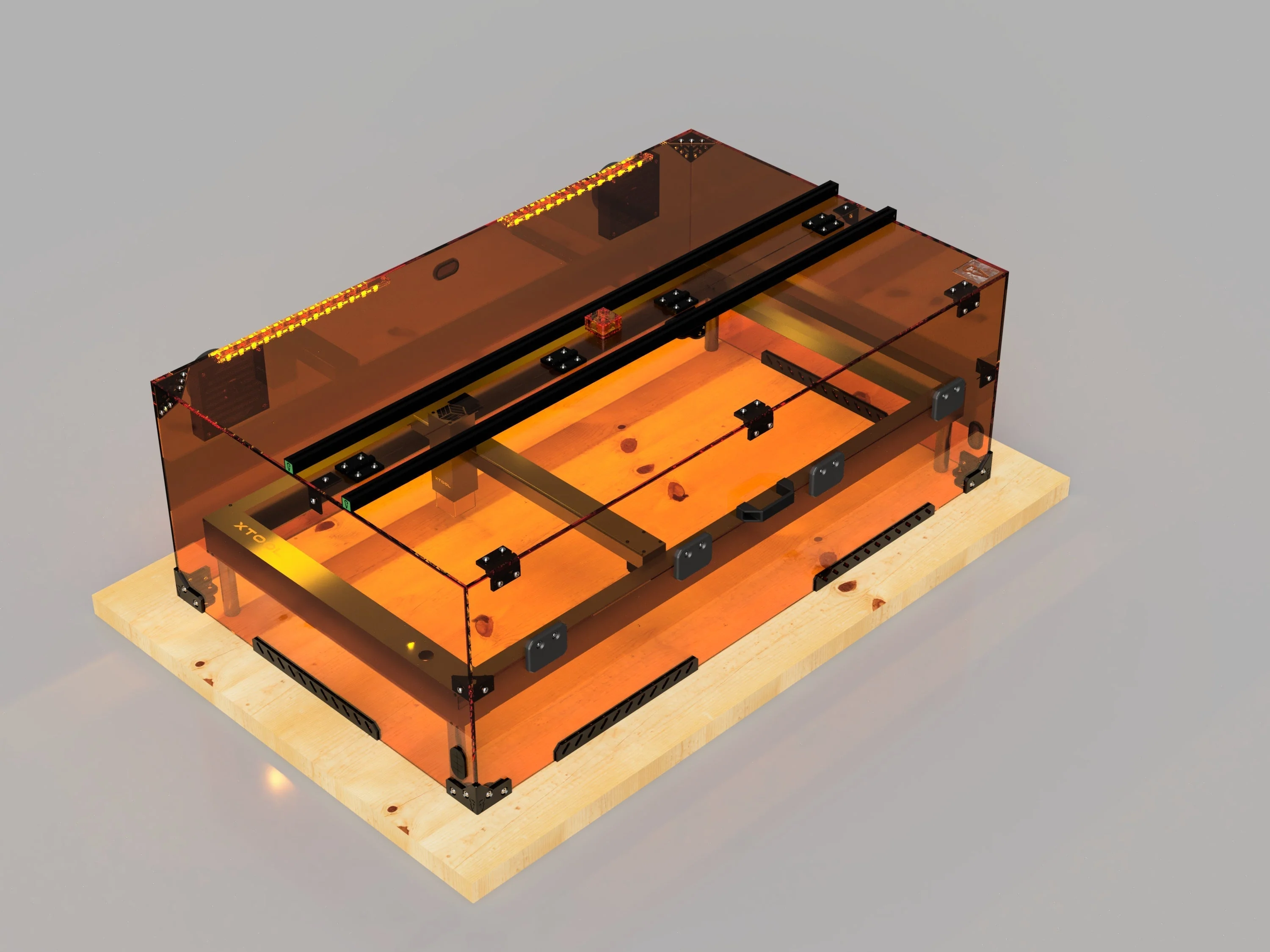

• Optional amber laser-filtering panels — spectrometer-tested to block up to 99.8% of light transmission at 450 nm (OD3+ filtering up to 520 nm), dramatically cutting the harsh blue flash for a far more comfortable work area.

Important: the laser-filtering panels reduce indirect glare but are not a certified laser-safety window and do not reclassify your Class 4 laser. Always wear OD-rated safety glasses for your wavelength (e.g. OD5+ for 450 nm diodes) while the laser is in use. Need an enclosure that meets ANSI guidelines? Contact us directly.

Configure your kit

• Panels & hardware — precision CNC-cut 1/4" panels in clear or optional amber laser-filtering acrylic, plus rust-resistant hardware.
• Printed parts — print your own brackets from the included files, or add our pre-printed parts for a complete, ready-to-build kit.

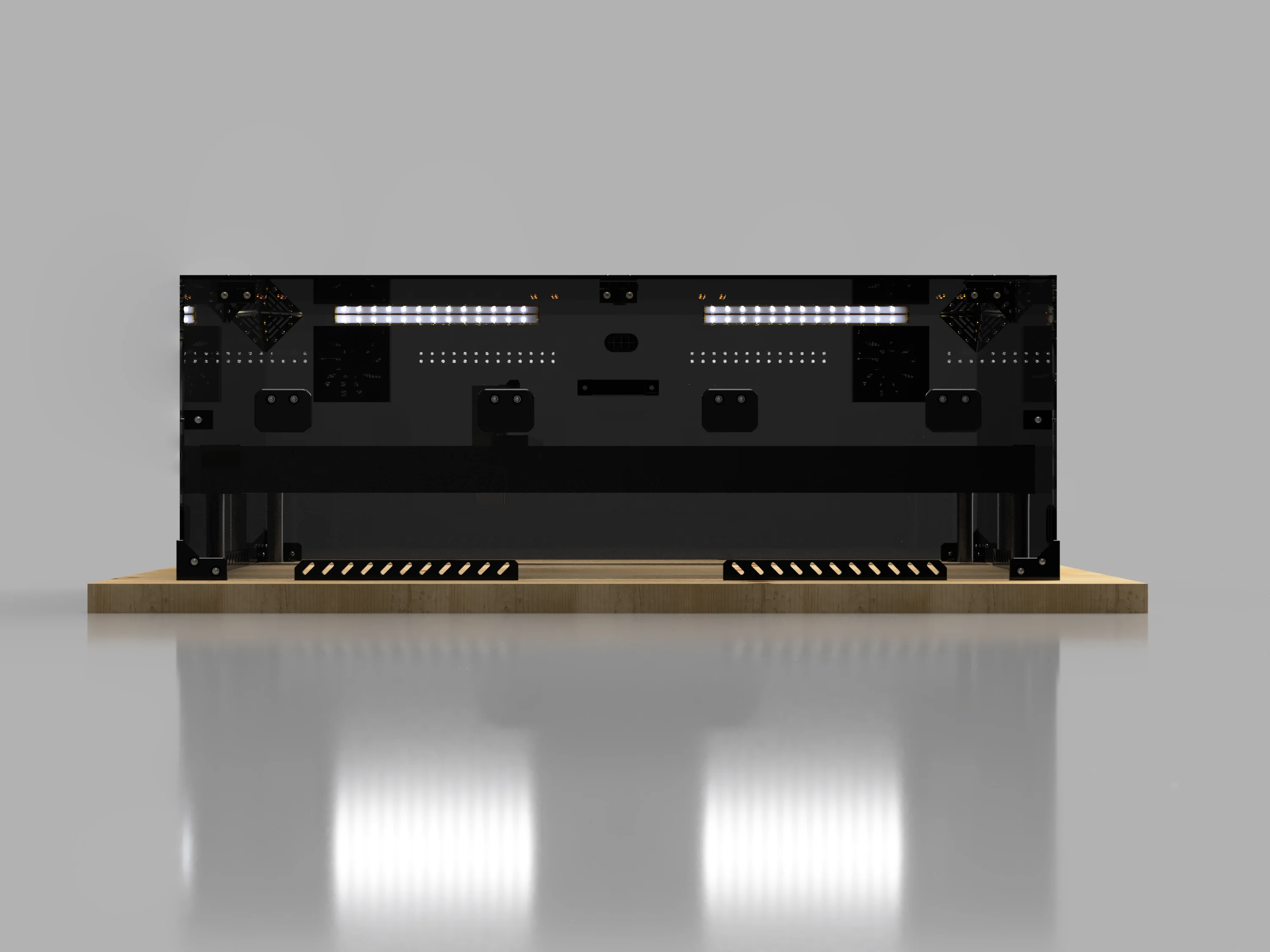

• Add-on accessories — LightBurn hood camera, dual-channel USB LED lighting kit, exhaust/inline fan and window venting, and BOFA filtration.

Specifications

• Fits: Algolaser Alpha (Extended, 400 × 850 mm), plus other extended-format diode engravers within the footprint
• External footprint: 1170 mm W x 710 mm D x 405 mm H (46" x 28" x 16")
• Internal working area: ~1160 mm W x 700 mm D x 399 mm H
• Design: set-over tabletop enclosure — one universal size fits every listed machine
• Panels: commercial-grade 1/4" (6 mm) acrylic — clear or optional amber laser-filtering
• Exhaust: two 4" exhaust ports (select your vent side); fan sold separately — 95 CFM (light-duty), 200 CFM (compact), window exhaust kit, or PrintPRO 3 filtration
• Ports & airflow: 3 wire grommet ports; adjustable airflow vents for volume and direction
• Doors: magnetically latched front and top access
• Made in: Sacramento, California, USA

Download files and assembly instructions here

Why choose the Clearview Extended V3 enclosure

• Made-to-fit, not generic — sized for extended-bed diode machines, with clearance for the long gantry and rotary.
• Protects your machine and your lungs — keeps soot off your laser and smoke out of your breathing zone.
• Workflow-first features — hood camera, adjustable airflow vents, wire grommet ports, and dual doors built in.
• Commercial-grade build — thick 1/4" panels with the weight and feel of professional lab equipment.
• US-made by a small business — CNC-cut in Sacramento with genuine, hands-on support.

About Clearview Plastics

Neil Henderson here, owner and head designer at Clearview Plastics. My shop is a California-based artisan design studio, and we build every enclosure in-house in Sacramento. Our panels are professionally CNC-cut for accuracy, with parts designed specifically for each machine we support — this isn't a generic box off a marketplace. When you order through us, you work directly with me, and that relationship comes with my genuine appreciation and skilled, personal help.

Frequently asked questions

Will my extended / long-bed laser fit?
The enclosure has a 1170 mm W x 710 mm D x 405 mm H external footprint, leaving roughly 1160 x 700 mm and about 399 mm of height inside the frame — sized for extended-format machines with an approximate 800 × 400 mm work area. Every machine on our compatibility list fits, including the xTool D1 Pro, Neje 3/4 Max, Algolaser Alpha, iKier K1, and AtomStack X40 Max. If your model isn't listed, send us your machine's frame dimensions and we'll confirm fit before you order.

Do the laser-filtering panels mean I don't need safety glasses?
No. The amber panels filter light at the wavelength diode lasers operate at and greatly reduce indirect glare, but they are not a certified laser-viewing window. Always wear appropriate OD-rated safety glasses (e.g. OD5+ for 450 nm) whenever the laser is running.

Does this enclosure comply with ANSI Z136.1?
No. This enclosure is designed for fume containment and glare reduction, not to reduce a Class 4 laser to Class 1. Follow all Class 4 laser safety protocols. If you need an enclosure that meets ANSI guidelines, contact us directly.

Does it have an exhaust port for smoke and fumes?
Yes. The enclosure includes a 4" exhaust port to connect a flexible 4" hose and vent outside. From there, add the fan setup that fits your workload: a 95 CFM exhaust fan (includes the mounting bracket) for light-duty use, a 200 CFM compact fan for added air circulation, or our window exhaust kit — an inline fan, window insert, and 16 feet of hose. If venting outside isn't possible, add a BOFA PrintPRO 3 filtration unit to clean the air indoors.

Is there room for a rotary?
Yes. The internal height (about 399 mm / 15.7") clears the rotary and a fully articulated laser head, with enough room to engrave objects up to an 80 mm glass or tumbler.

What's included, and what do I supply?
The base kit includes acrylic panels and hardware; you print the brackets from the included files. Add our pre-printed parts for a complete kit. In all cases you supply a 4" dryer hose, and for heavy use we recommend adding an inline exhaust fan.

Do you ship internationally?
Yes. Shipping is calculated at checkout via USPS/UPS/FedEx (HS code 8538.10). Express services often cover import fees, but additional VAT, tariffs, or fees may apply depending on your country.

What is your return policy?
We offer a 30-day return policy. Unused, undamaged panels with the masking fully attached are eligible for a full refund less return shipping. If panels are damaged after shipment or the protective mask has been removed, we can't offer a refund. To check fitment, consider partially assembling with the mask still on — if it isn't for you, you're still eligible for a full refund.

Why do the product photos vary slightly?
We update and improve our enclosures often, and as a small business a fresh photoshoot for every iteration isn't realistic. Function is always constant or improved. For the clearest picture of the current version, rely on the renderings rather than the photos.
